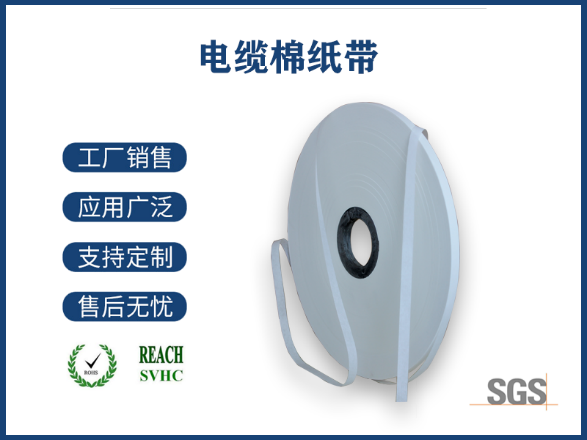

[產品說明]: 又稱電纜隔離紙，棉紙提供了紙漿長纖維的蓬松性與耐加工性，特別適用于電纜結構間隙繞包、隔離與填充。
Product Description: Also called cable isolation paper, cotton paper provides a long fluffy fiber and pulp processing, especially use for wrapping, isolation and filling in the gap of cable.
[應用方式]: 主要用于通訊電纜、電力電纜、高頻信號線、電源線、橡套電纜等的繞包，起隔離，填充，吸油的作用。
Application: Mainly use for wrapping in communication cables, power cables, high-frequency signal lines, power lines, rubber cable wrap, plays a role in isolation, filling, oil-absorbing.
一、主要技術指標：
Main specification:
| 產品規格Specification | 斷裂伸長率Elongation At break（%） | 抗張強度Tensile strength（kgf/15mm） | 基重Basis weight（g/m2） |
| 35±5μm | 2↑ | 3.4↑ | 33.24 |
| 40±5μm | 2↑ | 3.4↑ | 33.24 |
| 43±5μm | 2↑ | 3.2↑ | 35.24 |
| 45±5μm | 2↑ | 4↑ | 37.35 |
| 50±5μm | 2↑ | 4.5↑ | 39.26 |
| 60±5μm | 2↑ | 5↑ | 49.06 |
| 65±5μm | 2↑ | 5.5↑ | 52.36 |
| 80±5μm | 2↑ | 7↑ | 58.33 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||
二、顏色：白色
Color: White三、電氣特性：主要作為隔離，防止導體氧化發黑，同時可用于電纜結構間隙填充與包覆，與傳統PP帶，聚酯帶等材料相比較，比重輕50%，手感好，韌性好，無毒環保等優點。經200℃高溫測試，不熔，不脆，不粘護套外皮。
Electrical characteristics: Mainly used as an isolation to prevent conductor oxidation and blackening, can also be used for filling and coating, compared to traditional PP tape, polyester tape, the proportion light 50%, feel good, toughness, nontoxic and environmentally etc. test by 200 ℃ high temperature, won't melt, not crisp, non-stick outer sheath.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
